Finally Met You - Glory Route Pro Game Edition
Tossing a lot of routers, including MTK 7620 and BCM5357 as the main representative. In all fairness, MTK7620's solution is very much liked. The highly integrated design effectively controls the cost. At the same time, with the help of other third-party firmware such as ASUS, Pole Routing, Pandora, etc., it can also be turned into a router of other brands and can increase NAS. , smart boxes and other functions.
One, out of the box
Glory Route Pro Game Edition is an AC1167M dual-band gigabit wireless router, based on Hass dual-core platform.

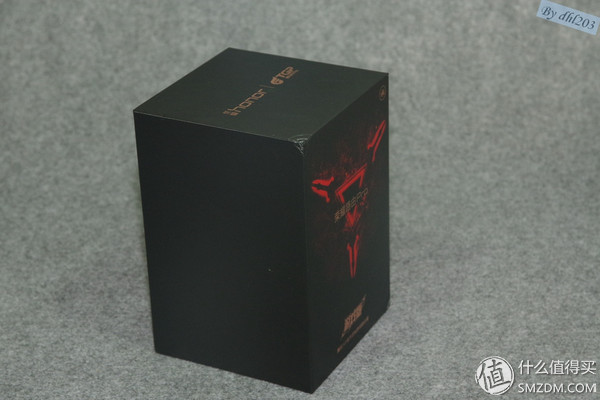

The router's packaging is a standard cube, with information about the product on all sides. The most noticeable one is the logo of the TGP game platform TGP.
Out of the box
The full set of products

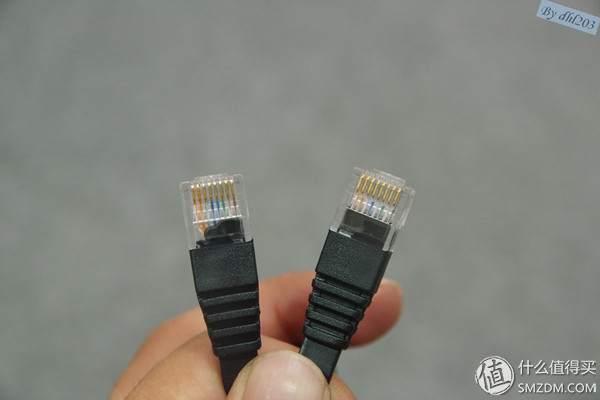

The accessories are mainly power supply, network cable, and instructions.
router
Huawei's network communications products will use Hass processor developed by itself. The processor used by Honor router is Hassian SD5650, ARM A9 dual-core frequency is 1GHz, other hardware specifications are 256MB RAM and 128MB FLASH, built-in 2.4G 300Mbps signal Amplifier and 5G 867Mbps signal amplifier.
The shape of the router is also a regular cube. The corners are chamfered and slightly rounded. There is a gap between the top cover of the router and the frame, which helps to dissipate internal heat.
There is a “HI†LED independent switch on the front of the router that can be paired with other honorable network products such as honor boxes.
The left and right sides of the router are completely smooth sides without any interface or pattern.
The back of the router has a USB interface, a power interface, five Gigabit Ethernet ports, a WAN interface, and four LAN interfaces. There are two game acceleration dedicated network ports.
There are cooling holes around the bottom of the router. Antiskid feet and product labels are all available.
Second, basic function experience
1, routing
After the power is turned on, use a network cable to connect the computer and the router. In the address bar, enter 192.168.3.1 to set. The whole process is relatively simple. Honor routing can be complicated by configuring the WAN interface to connect to the old router. This is a major highlight.
After the boot configuration is completed, the automatic upgrade function is enabled, and the router automatically updates the firmware, which is very user-friendly.
After the configuration is complete, routing functions can be configured through Internet access, WIFI, game acceleration, terminal management, and other functions such as terminal speed limit, WIFI timer closing, and WIFI transmit power.
2, mobile APP
The mobile phone can be downloaded in the application market. After downloading HILINK, the same control and function can be implemented on the PC.
Third, the use of experience
1, game upgrade package pre-download
Connect the USB port of the router to the U disk, as long as the pre-download function is enabled in the router settings and Tencent game platform settings, as long as the game content is updated, the offline download package will be downloaded to the U disk inserted in the USB interface of the router in time. After the player turns on the computer and runs the Tencent game platform, the game can achieve "seconds" update. After opening the automatic update function, it is more convenient and quick.
After the pre-download is complete, you can see that the upgrade package is stored on the U disk of the router.
Start Update
2, game acceleration
The game acceleration function according to the official description can be understood as "QOS function + game server preferred function." For the QOS function, Honor Routing does not open the QOS function setting. It only forwards the game digits in the Tencent TGP game platform. At the same time, based on the player's location, the game server is preferentially connected. It is worth noting that using this function, you must use a network cable to connect the GAME interface between the computer and the router. Otherwise, this function will not work.
In the crossfire game, the delay time of the server with Unicom's Beijing Second District was 24ms. During the game, the measured delay value was about 20ms. The performance was very stable.
3, U disk data sharing
After HILINK is installed on the mobile phone, select the “Route Store†function in the interface to browse the files in the U disk of the router.
The correct identification on the router, U disk name and capacity, can be displayed normally.
If the user does not like to install the HILINK APP, the user can also use the data sharing function by installing the ES file browser on the mobile phone.
Hit Start ES File Browser and click on the upper right corner
Create a new SMB LAN connection, enter the path 192.168.1.3
Read the router root directory successfully
Select to see the files in the directory
Click on the video file, choose to open the program, use MXLAYER to play normally.
Thanks to the hardware performance of the router, opening the file is basically "seconds open", and the response time and opening the local file do not feel the difference. While playing video files, dragging the progress bar at any time can also achieve “second responseâ€, which is very powerful. During the process of playing the movie, tap the screen to display the file information. It can be seen that the file is from the router network file.
3, Thunder remote download
Although the MTK 7620 architecture router has been used in the Thunder remote download function, but due to the CPU frequency of only 580MHZ, coupled with the imperfections of the firmware development, the entire experience process feels very "tasteless." Not only is the response slow, the download speed is unstable, and the remote downloader is often lost.
The honor route Pro is much better, the firmware is originally developed by the original manufacturer, and the CPU and RAM performance are very powerful. In the downloading process, the performance is very stable.
4, transmission speed
There are two key factors in building a wireless home area network. One is stability and the other is speed. Stability depends on the hardware and firmware of the router and requires the user to experience it in a long-term experience.
In the wireless LAN state, the router is connected to a USB storage device, a large volume audio and video file is placed in the device, and the speed of the internal network transmission of the router in the WIFI transmission state is tested by copying and copying files between the computer and the U disk. To eliminate system bottlenecks, the U disk is a Kingston FURY series 64G U disk, the computer uses an SSD, the SSD model is INTELS3500 480G, and the computer and router are connected through the 5GHz band.
Router to SSD read speed:
SSD to Router Write Speed:
The speed of reading and writing data from the router is very stable. Although the speed is not very fast, it is sufficient for daily copying small files and sharing videos.
5, signal strength
Test the WIFI signal strength of the R7500 router. The home layout is 100 square meters with a two-room and two-room structure. The general structure is as follows:
A is the location of the router, and B, C, D, E, and F are indoor test locations. The signal strengths at B, C, D, E, and F are shown in the figure below.

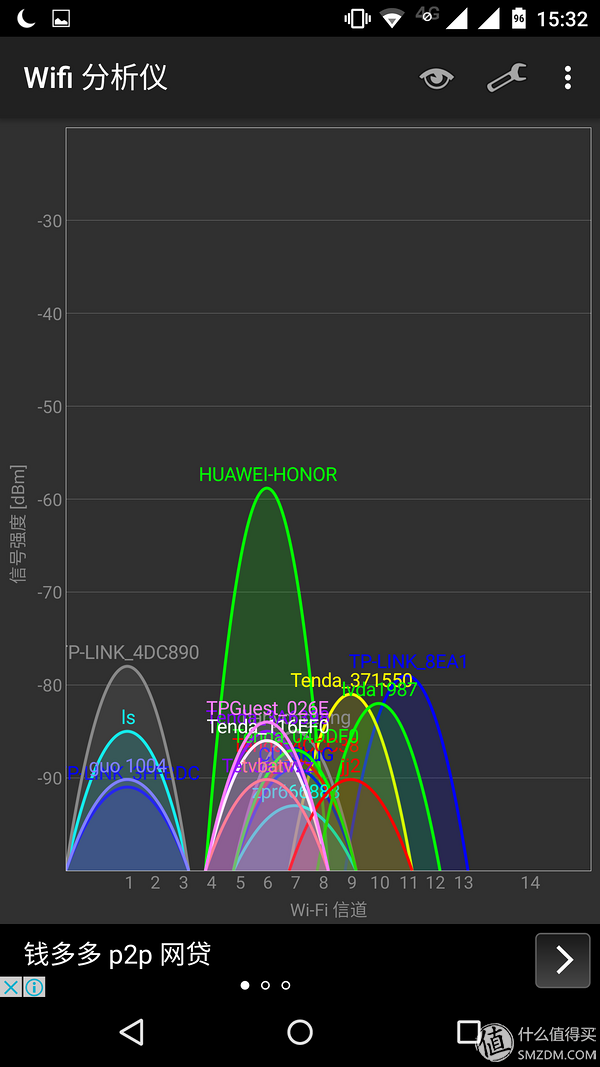

2.4GHz signal test results
5GHz signal test results
6, speed test
The speed test uses different methods, and the test results are very different. We all enjoy entertainment (China Unicom's official claim is 20M broadband).
Fourth, dismantling
Again, "I don't know if things are good or not.
The dismantling of the Glory Route Pro game version is not complicated. Tear off the two non-slip strips at the bottom of the route to reveal the 4 screws on the back.
Start dismantling, open the bottom cover, there is a heat dissipation silicone inside the cover, also plays a role in fixing the main board
Unplug the two contacts of the antenna and remove the main board. There are only two antennas and switch buttons inside the housing.
The main board is designed for a double-layer motherboard. The two main boards are connected through a dedicated interface.
The main function of the upper board is to realize WIFI and USB data transmission, and to achieve signal amplification of 2.4G and 5G respectively. PA5200 chip realizes signal amplification, and comes from Qualcomm, RTL8812AR and RTL8192AR to realize WIFI and USB signal transmission together.
The lower board mainly includes processors, RAM particles, FLASH particles, and other hardware.
FLASH chip from Winbond, capacity 128MB
Remove the shield with thermal silica gel, CPU chip from Huawei, model SD5650, RAM chip from South Asia, capacity is 256MB.
V. Summary
The trial of Glory Route Pro ends here, summarized as follows:
advantage:
1, dual-core 1G A9 processor, 256MBRAM, 128MB FLASH, multi-point 2.4G 5G signal amplifier, for a large area of ​​home applications to connect multiple wireless devices used at the same time, daily tasks in multi-task operation without pressure.
2, game acceleration and game pre-download function, as the main selling point, more practical, 1.1 times the gaming experience accumulated better than nothing.
3, the original firmware comes with the Thunder offline download function, very stable and satisfactory. The PC and APP can manage routes at the same time, which is user-friendly.
insufficient:
1, Huawei's Hass processor, although the hardware is relatively strong, due to various reasons, no third-party firmware can be brushed in to expand the router's functionality. Especially at this stage, some users report that this route is unstable, and there are many firmware issues. Official follow-up is very slow. Look forward to an early compensation through third-party firmware.
2, Hass processor heat is relatively large, I believe Huawei users have experienced the phone. In the same way, the honor PRO router has a larger heat output and should pay attention to heat dissipation in daily use.
